In digital pathology, a single Whole Slide Image (WSI) can exceed 100,000 pixels in both width and height, often yielding file sizes between 1 GB and 5 GB. Analyzing these massive gigapixel images manually is time-consuming and prone to inter-observer variability.
Automating this process requires robust machine learning pipelines designed specifically for histopathology. This technical breakdown explores the end-to-end architecture of these pipelines, from raw slide ingestion to clinical-grade diagnostic predictions.
The Architecture of a Histopathology Machine Learning Pipeline

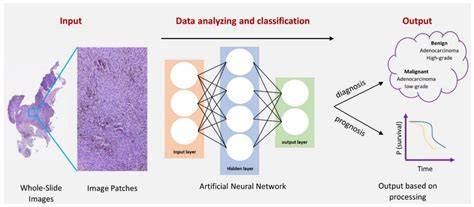

A standard machine learning pipeline for automated histopathology converts high-resolution gigapixel slides into actionable diagnostic insights. Because these images cannot fit directly into GPU memory, the pipeline must break down, process, and reassemble the data systematically.
[Raw WSI (.svs, .ndpi)] ➔ [Preprocessing & Tiling] ➔ [Feature Extraction] ➔ [Slide-level Aggregation (MIL)] ➔ [Clinical Output]
The table below outlines the core phases of a modern digital pathology pipeline:
| Pipeline Stage | Key Operations | Primary Tools & Frameworks |
| :--- | :--- | :--- |
| 1. Data Ingestion | Reading multi-resolution pyramid formats | OpenSlide, cuCIM, TIAToolbox |
| 2. Preprocessing | Tissue detection, tiling (patching), stain normalization | OpenCV, Albumentations, Macenko Method |
| 3. Feature Extraction | Converting patches to low-dimensional vectors | ResNet, ViT, Self-Supervised Learning (SSL) |
| 4. Aggregation & Inference | Slide-level classification, segmentation, profiling | Multiple Instance Learning (MIL), Graph Neural Networks (GNNs) |
| 5. Explainability | Generating clinical heatmaps | Attention Rollout, Grad-CAM |
Step 1: Data Acquisition and Preprocessing
The preprocessing stage is critical. Raw tissue slides contain artifacts like air bubbles, pen marks, dust, and folded tissue. These must be filtered out to prevent the machine learning model from learning false correlations.
Handling Megapixel Scale: Patching and Tiling
Because a WSI is too large for GPU memory, the pipeline must segment the tissue region into smaller, manageable squares called patches or tiles (typically $224 \times 224$ or $512 \times 512$ pixels) at a specific magnification level (e.g., 20x or 40x).
- Otsu’s Thresholding: The pipeline converts the slide to the HSV color space and applies Otsu’s binarization to separate the foreground tissue from the white background.
- Grid Generation: A non-overlapping grid is mapped over the identified tissue regions.
- Patch Extraction: Only tiles containing a minimum threshold of tissue (e.g., >50% tissue area) are extracted and saved for downstream processing.
Artifact Removal and Color Normalization
Variations in tissue preparation, slice thickness, and scanner brands introduce significant color variation. To ensure model generalization, pipelines employ stain normalization.
- Macenko Method: This algorithm computes the optical density of the slide, estimates the unique stain vectors for Hematoxylin and Eosin (H&E), and maps them to a standard reference slide.
- Data Augmentation: During training, pipelines apply color jittering, random rotation, and blurring to simulate variations in slide preparation.
Step 2: Feature Extraction and Model Selection
Once the slide is tiled into thousands of normalized patches, each patch is passed through a deep learning backbone to extract rich visual features.
[Normalized Patch] ➔ [Deep Learning Encoder (CNN/ViT)] ➔ [1D Feature Vector (e.g., 1024-dim)]
Convolutional Neural Networks (CNNs) vs. Vision Transformers (ViTs)
Historically, ResNet architectures have been the standard for feature extraction. However, Vision Transformers (ViTs) are increasingly used due to their ability to capture long-range spatial dependencies.
| Metric / Feature | Convolutional Neural Networks (e.g., ResNet50) | Vision Transformers (e.g., ViT-S/16) | | :--- | :--- | :--- | | Inductive Bias | High (assumes local pixel correlation) | Low (requires more data to learn structures) | | Computational Footprint | Low to Moderate | High (quadratic complexity with patch count) | | Contextual Range | Localized (receptive field limits scale) | Global (self-attention spans the whole patch) | | Data Requirements | Performs well on medium datasets | Requires large-scale pretraining |
Self-Supervised Learning (SSL) in Pathology
Labeling histopathology slides at the pixel or patch level requires thousands of hours of expert pathologist labor. To bypass this bottleneck, modern pipelines use Self-Supervised Learning (SSL) models like DINO or SimCLR.
By pretraining on millions of unlabeled pathology patches, SSL encoders learn to recognize cellular structures, glandular patterns, and stroma without human labels. The frozen encoder then outputs highly descriptive feature vectors (e.g., a 1024-dimensional vector per patch).
Step 3: Slide-Level Classification and Weakly Supervised Learning
In clinical practice, labels are typically provided at the patient or slide level (e.g., "Adenocarcinoma" vs. "Normal"), not at the individual patch level. This scenario is addressed using Multiple Instance Learning (MIL), a form of weakly supervised learning.
[Slide] ➔ [Bag of Patches (Instances)] ➔ [MIL Pooling Function] ➔ [Slide-Level Prediction]
Multiple Instance Learning (MIL) Explained
In MIL, the slide is treated as a "bag" and the individual patches are "instances."
- Instance Encoding: All patches from a slide are processed by the feature extractor to yield a matrix of size $N \times D$, where $N$ is the number of patches and $D$ is the feature dimension.
- Attention-Based Pooling: Instead of simple averaging, an attention network learns a weight ($a_i$) for each patch, indicating its diagnostic importance.
- Slide Classification: The weighted sum of the patch features is passed to a final classifier to predict the slide-level diagnosis.
$$\text{Slide Representation} = \sum{i=1}^{N} ai \mathbf{h}_i$$
This approach allows the model to identify focal tumor regions containing as few as 1% malignant cells within a massive, mostly healthy tissue slide.
Step 4: Post-Processing, Visualization, and Explainability
For machine learning models to be trusted in clinical workflows, they must be explainable. Pathologists will not accept a "black box" diagnostic prediction.
Generating Heatmaps and Attention Maps
To make predictions interpretable, the pipeline maps the attention weights ($a_i$) calculated during the MIL step back to their original spatial coordinates on the WSI.
- Attention Heatmaps: A color-coded overlay is projected onto the slide. Areas with high attention (close to 1.0) are colored red, highlighting suspected malignant regions, while low-attention areas are blue.
- Interactive Triage: Pathologists can zoom in on high-attention regions to verify the model's findings, speeding up the review process and reducing diagnostic errors.
Challenges and Best Practices in Production Deployment
Transitioning a digital pathology pipeline from research to clinical production introduces several real-world challenges.
| Challenge | Impact | Mitigation Strategy | | :--- | :--- | :--- | | Domain Shift | Performance drops when running on slides from a new hospital or scanner. | Use heavy color augmentation (e.g., stain-mixing) and domain adversarial training during model development. | | Out-of-Distribution (OOD) Data | Pen marks, tissue folds, or foreign artifacts trigger false positive predictions. | Implement an upstream quality control (QC) model to automatically flag and mask corrupted patches. | | Computational Bottlenecks | Inference on a single 100k x 100k slide can take too long for real-time clinical use. | Implement mixed-precision inference (FP16), utilize TensorRT, and run patch extraction in parallel using multi-threaded CPU pipelines. |
Architectural Best Practice: Decouple Extraction from Classification
Always decouple your feature extraction step from your aggregation model. Store the extracted patch features (as .h5 or .parquet files) on high-speed NVMe drives. This allows you to train, tune, and iterate on your slide-level MIL models in seconds, without having to re-run heavy deep learning backbones over gigabytes of pixel data.
