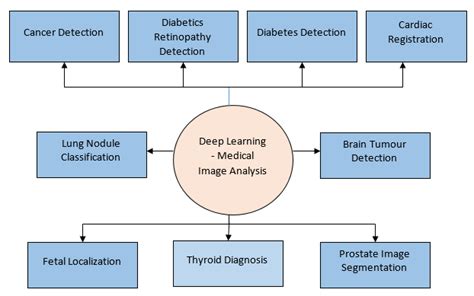

[Deep Dive] Deep Learning Applications In Detecting Early Micro-Fractures In Emergency Radiology

In high-volume emergency departments (ED), speed and accuracy are the dual pillars of patient care. Among the most challenging diagnostic tasks for emergency radiologists is identifying micro-fractures—subtle, non-displaced, stress, or occult bone breaks that are easily missed on initial plain radiographs. Research indicates that missed fractures account for up to 80% of diagnostic errors in emergency departments.

Deep learning (DL), a subset of artificial intelligence (AI), is transforming emergency radiology by serving as a highly sensitive digital second opinion. By analyzing pixel-level variations imperceptible to the human eye, deep learning models assist radiologists in detecting early micro-fractures rapidly, reducing diagnostic errors, and streamlining clinical workflows.

The Mechanics of Deep Learning in Radiographic Analysis

Traditional computer-aided detection (CAD) systems relied on hand-crafted rules and edge-detection algorithms, which often yielded high false-positive rates. Modern deep learning models, however, learn features directly from vast datasets of labeled medical images.

Convolutional Neural Networks (CNNs) as the Backbone

At the core of AI-driven fracture detection are Convolutional Neural Networks (CNNs). CNNs process medical images through hierarchical layers:

Lower Layers: Detect basic geometric primitives like edges, contrast changes, and pixel intensities.
Mid-level Layers: Assemble these primitives into textures and shapes (e.g., cortical boundaries, trabecular patterns).
Deep Layers: Recognize complex anatomical anomalies, such as a subtle disruption in the continuity of a bone cortex (the hallmark of a micro-fracture).

Object Detection vs. Segmentation Models

In emergency radiology, two primary DL architectures are deployed:

Object Detection Models (e.g., YOLO, Faster R-CNN): These place a bounding box around the suspected fracture site, alerting the clinician to the precise area of concern.
Semantic and Instance Segmentation Models (e.g., U-Net): These classify images at the pixel level, highlighting the exact contours of the micro-fracture. This is particularly useful for measuring the width of joint spaces or the extent of a hairline fissure.

Key Deep Learning Applications for Micro-Fracture Detection

[Raw X-Ray Image] ➔ [Preprocessing & Normalization] ➔ [CNN Feature Extraction] ➔ [Heatmap/Bounding Box Output]

1. Automated Detection of Scaphoid and Carpal Fractures

Occult scaphoid fractures are notoriously difficult to spot on initial X-rays, often requiring patients to wear precautionary splints for weeks.

The AI Advantage: Deep learning models trained on multi-view wrist radiographs can identify subtle cortical step-offs and lucency lines in the scaphoid.
Clinical Impact: AI reduces the rate of missed scaphoid fractures to under 5%, preventing long-term complications like avascular necrosis and non-union.

2. Identifying Subtle Rib and Pelvic Ring Micro-Fractures

In polytrauma cases, minor rib fractures or non-displaced pelvic fractures can easily be overlooked due to overlying bowel gas or soft-tissue shadows.

The AI Advantage: DL algorithms can "unwrap" the rib cage virtually or suppress soft-tissue structures on digital radiographs, isolating the bone anatomy.
Clinical Impact: Swift identification of rib micro-fractures prevents secondary complications such as delayed pneumothorax or flail chest.

3. Spotting Pediatric Greenstick and Epiphyseal Fractures

Children's bones are highly elastic, often resulting in greenstick or buckle (torus) fractures rather than complete breaks. Furthermore, distinguishing a micro-fracture from an open growth plate (epiphyseal plate) requires immense expertise.

The AI Advantage: Models trained specifically on pediatric datasets compare patient scans against age-matched normal development templates to flag abnormal cortical bulging.
Clinical Impact: This minimizes unnecessary CT scans, protecting pediatric patients from ionizing radiation.

Comparative Analysis: Traditional Radiology vs. AI-Assisted Workflow

Integrating deep learning into the emergency radiology workflow changes the diagnostic paradigm. The table below compares these two approaches across key clinical metrics.

Challenges and Limitations of Deploying Deep Learning in ER Settings

While the clinical benefits are undeniable, integrating deep learning into high-stress emergency environments presents several challenges:

The "Black Box" Problem: Deep learning models do not inherently explain why they flagged a specific region as a fracture. To combat this, developers use Grad-CAM (Gradient-weighted Class Activation Mapping) to generate heatmaps, showing radiologists the exact pixels that influenced the model's decision.
Data Drift and Generalizability: A model trained on high-resolution images from a single manufacturer's X-ray machine may underperform when deployed on older, lower-resolution mobile X-ray units used in trauma bays.
Integration with PACS and DICOM Standards: For AI to be useful in an emergency, it must integrate seamlessly into existing Picture Archiving and Communication Systems (PACS). If a radiologist has to log into a separate portal to view AI findings, clinical adoption drops significantly.

Best Practices for Implementing AI Fracture Detection in Emergency Departments

For clinical leads and IT administrators looking to adopt deep learning tools for fracture detection, a structured implementation strategy is vital.

Step 1: Validate with Local Data

Before full-scale deployment, run a retrospective silent pilot. Run the AI model on 500–1,000 historical X-rays from your specific facility to measure local sensitivity, specificity, and false-positive rates.

Step 2: Prioritize "Triage" Worklists

Configure your PACS so that the AI operates in the background. If the AI detects a micro-fracture, it should automatically bump that study to the top of the radiologist's reading queue, flagging it as "suspected positive."

Step 3: Establish Clear Clinical Guidelines

Educate emergency physicians and radiologists that AI is a support tool, not a replacement. A negative AI reading should never override clinical suspicion if a patient presents with focal bone tenderness.

The Future of Emergency Radiology: Multimodal AI and Beyond

The next frontier of deep learning in emergency medicine is multimodal AI. Future models will not analyze images in isolation; they will ingest the patient's electronic health record (EHR) data—such as mechanism of injury, localized pain scores, and age—alongside the X-ray. By combining clinical context with computer vision, the diagnostic accuracy of AI in detecting early micro-fractures will approach near-perfection, ensuring safer, faster, and more reliable care for emergency patients worldwide.
