[Blueprint] High-Availability Framework For Cloud-Based Machine Learning Imaging Diagnostics

In clinical environments, minutes of system downtime can directly impact patient outcomes. As healthcare institutions increasingly integrate cloud-based machine learning (ML) models for imaging diagnostics—such as detecting acute stroke, identifying pulmonary embolisms, or staging oncology scans—system reliability is paramount.

A standard cloud deployment is insufficient for critical diagnostic workloads. This blueprint provides a production-ready, high-availability (HA) framework designed to achieve 99.99% ("four nines") uptime for medical imaging AI pipelines, ensuring continuous delivery of diagnostic insights when clinicians need them most.

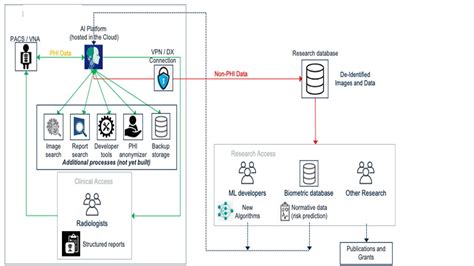

Architectural Overview of the High-Availability Framework

A high-availability framework for cloud-based machine learning imaging diagnostics must bridge the gap between legacy hospital infrastructure (PACS/DICOM routers) and modern, elastic cloud environments. The architecture must handle large binary payloads (DICOM files) and run compute-heavy GPU inference reliably.

[ Hospital PACS ]
       │ (DICOM C-STORE)
[ Edge DICOM Gateway (De-identification & Compression) ]
       │ (HTTPS / TLS 1.3)
[ Cloud Load Balancer (Anycast IP / Latency-Based Routing) ]
       ├──> [ Region A (Active) ] ──> [ Auto-Scaling GPU Pods ] ──> [ S3/GCS Object Storage ]
       └──> [ Region B (Active) ] ──> [ Auto-Scaling GPU Pods ] ──> [ S3/GCS Object Storage ]

Core Components of the Blueprint

To prevent single points of failure (SPOFs), the architecture decouples data ingestion, processing, model inference, and result delivery.

Data Ingestion and DICOM Routing Pipeline

Local Acquisition: The imaging modality (CT, MRI, X-Ray) sends raw DICOM files to the hospital’s Picture Archiving and Communication System (PACS).
Edge Processing: An on-premise Edge Gateway intercepts the DICOM files, strips Protected Health Information (PHI) to ensure HIPAA compliance, compresses the pixel data, and securely transmits it to the cloud.
Asynchronous Ingestion: The Cloud Load Balancer routes the request to the nearest active region. The Ingestion API writes the raw payload to a highly durable Object Storage bucket and publishes an "Image Ready" event to the Message Broker.

Designing for Fault Tolerance and Redundancy

A resilient medical imaging AI system must withstand cloud region outages, network degradation, and hardware failures.

Multi-Region Active-Active Deployment

Relying on a single cloud region introduces a catastrophic point of failure. This framework utilizes an Active-Active multi-region architecture.

Stateless Application Tier: The API and ML inference layers store no local session state. Any request can be routed to any container in any region.
Global Traffic Routing: DNS providers use latency-based routing with active health checks. If Region A experiences a latency spike or outage, traffic instantly shifts to Region B.

Database and Model Registry Replication

To maintain consistency across regions without sacrificing write performance, the framework separates transient inference metadata from long-term model storage.

Model Artifacts: ML models are stored in globally replicated object storage buckets (e.g., AWS S3 with Cross-Region Replication). If Region A's bucket becomes unavailable, the local inference servers fall back to the replicated bucket in Region B.
Database State: A distributed SQL database (such as CockroachDB or Amazon Aurora Global Database) manages patient study status, execution logs, and audit trails. Writes are committed across a quorum of nodes, preventing data loss during unexpected regional failovers.

Real-Time Inference and Load Balancing

ML models for imaging diagnostics are computationally heavy and require GPU acceleration. Managing GPU resources efficiently is critical to maintaining low-latency inference.

Intelligent Load Distribution with Latency-Based Routing

Incoming DICOM studies vary in size; a 3D chest CT scan contains hundreds of slices, whereas a digital X-ray is a single frame.

Layer 7 Load Balancing: The load balancer inspects incoming requests and routes heavy 3D studies to dedicated high-performance GPU pools, while lightweight 2D studies go to cost-optimized GPU instances.
Backpressure Handling: If GPU queues reach capacity, the API gateway throttles non-urgent requests (e.g., routine screening scans) to prioritize emergency room (ER) diagnostic workloads.

Auto-Scaling GPU Clusters for Fluctuating Workloads

GPU instances are expensive and suffer from long boot times ("cold starts"). To balance cost and availability, implement a multi-tiered scaling strategy:

Warm Pools: Maintain a baseline of running GPU instances (e.g., NVIDIA T4 or A10G) based on historical hospital operational hours.
Queue-Based Scaling: Scale the Kubernetes cluster using the Horizontal Pod Autoscaler (HPA) driven by message queue depth (e.g., number of unprocessed messages in Kafka) rather than CPU or GPU utilization. This ensures the system scales up before the GPUs become saturated.
Multi-Instance GPU (MIG): Divide physical GPUs into smaller virtual instances. A single physical GPU can run multiple smaller models (e.g., brain hemorrhage detection and skull fracture detection) simultaneously, maximizing resource utilization.

Failover Mechanisms and Disaster Recovery (DR)

When components fail, the system must degrade gracefully without losing clinical data.

Automated Health Checks and Circuit Breakers

To prevent a failing service from dragging down the entire pipeline, implement the Circuit Breaker pattern:

[ Ingestion Service ] ──(Calls)──> [ ML Inference Pod ]
         ▲                               │
         │ (If failures > threshold)     ▼
[ Circuit Breaker: OPEN ] <────── [ Track Error Rate ]
         │
         └─ (Fallback: Route to backup CPU pool or queue for retry)

Deep Health Checks: Health endpoints must verify not just HTTP server status, but also GPU memory availability and model loading state. If a model fails to load into GPU memory, the pod declares itself unhealthy and is automatically replaced.
Circuit Breakers: If the ML inference service fails repeatedly, the circuit breaker opens. Instead of letting requests time out, the system immediately routes incoming studies to a fallback queue or returns a clear "Temporarily Unavailable" status to the clinical viewer, allowing radiologists to read the scan manually.

Disaster Recovery Strategies (RTO and RPO)

Define strict metrics for Recovery Time Objective (RTO) and Recovery Point Objective (RPO) based on clinical urgency.

Security, Compliance, and Data Privacy (HIPAA/GDPR)

Medical imaging data is highly regulated. Security cannot be compromised for availability.

Zero Trust Data Encryption: All data must be encrypted in transit using TLS 1.3 and at rest using AES-256 with customer-managed keys via a Key Management Service (KMS).
Edge De-identification: PHI (such as patient name, date of birth, and medical record number) is stripped from the DICOM headers at the hospital edge before upload. The system generates a secure hash to map the clinical results back to the patient record locally inside the hospital firewall.
Role-Based Access Control (RBAC): Restrict access to ML models and diagnostic outputs using strict Identity and Access Management (IAM) policies. Ensure every API call is logged to an immutable audit trail (e.g., AWS CloudTrail or a write-once database).

Monitoring, Observability, and SLA Management

Maintaining a high-availability framework requires continuous visibility into system performance.

[ Prometheus Metric Collector ]
       │
       ├──> Latency (p99 inference time < 15 seconds)
       ├──> Throughput (studies processed per minute)
       ├──> Error Rates (HTTP 5xx, GPU out-of-memory)
       └──> Model Drift (distribution of diagnostic outputs)
       │
[ Grafana Dashboard & Real-Time PagerDuty Alerts ]

Critical SLIs (Service Level Indicators) to Monitor

To guarantee a Service Level Agreement (SLA) of 99.99% availability, monitor these key metrics:

Inference Latency (p99): The time it takes for $99\%$ of diagnostic scans to receive an inference output. For emergency diagnostics, this should be $< 15$ seconds.
Ingestion Queue Lag: The number of messages waiting in the queue. A rising trend indicates that the GPU cluster is failing to scale quickly enough.
GPU Memory Utilization: Tracking GPU VRAM usage prevents Out-Of-Memory (OOM) errors before they cause container crashes.
Model Prediction Drift: Monitor the distribution of predicted classes (e.g., positive vs. negative findings). A sudden shift in prediction ratios may indicate data corruption or an upstream change in hospital imaging hardware.

Conclusion: Future-Proofing Clinical AI Deployments

Deploying machine learning models for clinical imaging diagnostics requires a paradigm shift from standard software engineering to mission-critical infrastructure design. By implementing this high-availability framework—leveraging multi-region active-active deployments, edge de-identification, intelligent GPU auto-scaling, and robust circuit breakers—healthcare organizations can confidently deploy AI tools into active clinical workflows. This blueprint ensures that when a life-saving diagnostic decision needs to be made, the AI system is online, secure, and performing at its peak.
